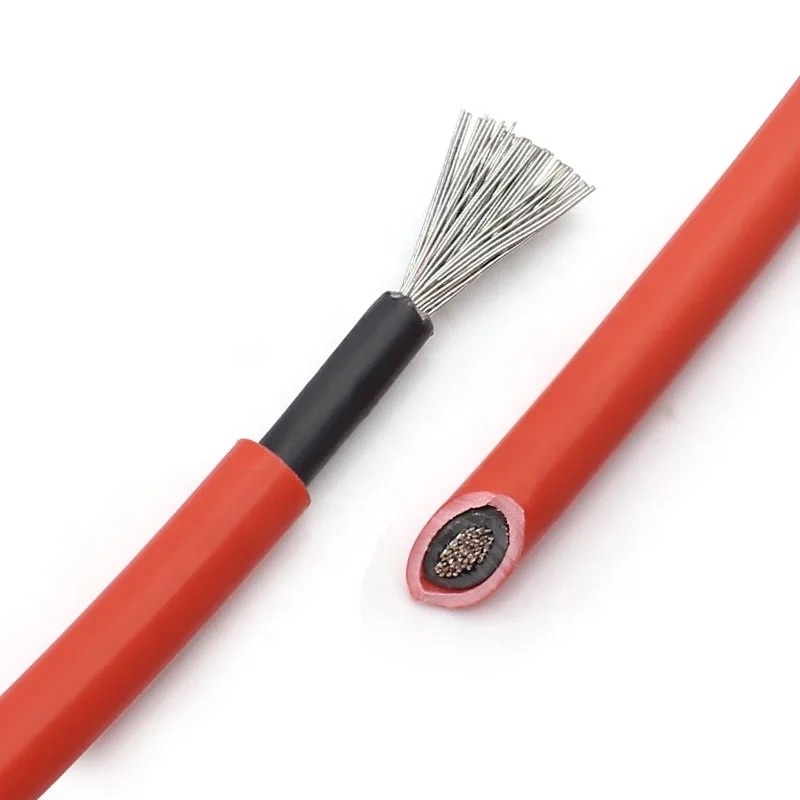

Hochiry DC PV Solar Cable Copper Electric Wire 2.5mm2 6mm2 10mm2

Name: Hochiry DC PV Solar Cable Copper Electric Wire 25mm2 6mm2 10mm2
Brand: Hochiry
Price: 1 USD

China Hochiry DC PV Solar Cable Copper Electric Wire 2.5mm2 6mm2 10mm2 wholesale

Brand Name : Hochiry

Model Number : PV1500

Certification : TUV&UL

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000 Pieces per Week

Delivery Time : 3-5 days

Packaging Details : 1. 250meters in a roll 2. 2 rolls in a carton 3. Carton dimension:42cm*42cm*21cm 4. Net weight:35kg 5.Gross weight:36kg

Product name : Single Core 10mm AWG Solar Cable

Conductor material : Tinned copper strands

Jacket : XLPO/XLPE/PVC/PE

Rated voltage : AC 600/1000V DC 1000/1800V

Core : Multi-core

Conductor : tinned copper conductor

Standard : IEC60502

Flame test according to : DIN EN 50265-2-1 UL 1571(VW-1)

Application : Application

Contact Now

2.5mm2 6mm2 10mm2 DC Solar PV Copper Electric Wire PV1-F Solar Panel Cable

PV1-F Solar Panel Cable is a special cable used for solar photovoltaic modules in the system. It has the characteristics of weather resistance, high temperature resistance, and friction resistance. It has a long service life and high-quality oxygen-free tinned copper conductors. To ensure the superior conductive effect, high-performance insulating materials and sheath materials after radiation cross-linking by a high-energy electron accelerator have reliable insulating and mechanical properties.

Product Paramenters:

Hochiry DC PV Solar Cable Copper Electric Wire 2.5mm2 6mm2 10mm2

Structure

Application standard: 2 PfG 1169/08.2007 Conductor: Stranded tinned copper wire conforming to DIN VDE 0295 and IEC 60228 Class 5

Insulation: Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin

Sheath: Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin

Insulation nominal thickness: 0.8mm

Nominal thickness of sheath: 0.9mm

Nominal cross section: 4mm2

Outer diameter of finished wire: 6.1±0.1mm

Specification: 1×1.5～1×70mm²; 2×1.5～2×35mm² AWG American standard and other specifications can be consulted and customized

Electrical Performance

Rated voltage U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC Maximum allowable AC voltage: 1.8 kV DC (conductor/conductor, no grounding system,

when the circuit is unloaded)

Insulation resistance: 1000 MΩ-km

Conductor resistance (20℃): ≤5.09Ω/km

Sheath surface resistance:
 the surface resistance of the finished cable sheath should not be less than 109Ω

Thermal Performance

Indoor temperature: -40℃ ~ +90℃

Conductor temperature: IEC / EN 60216-1 120 ℃ (20000h)

Short circuit temperature: 200℃/5 s

Heat resistance test: EN 60216-2 (temperature +120° C)

High temperature pressure test: EN 60811-3-1

Heat resistance: EN60068-2-78, 85% humidity

Mechanical Behavior

Minimum bending radius: 4×OD (fixed), 5×OD (flexing)

Osmotic: 2 PfG 1169 / 08.2007 appendix F

Slot propagation: 2 PfG 1169/08.2007

Appendix G Tensile strength and elongation of insulation and sheath: EN 60811

Life expectancy: 25 years

PV1-F photovoltaic cable product details

Model:	PV1-F	Outer diameter of conductor stranded:	2.60mm
Application standard:	2 PfG 1169/08.2007	Insulation nominal thickness:	0.8mm
Conductor material:	IEC 60228, Category 5 stranded tinned copper wire	Sheath Nominal Thickness:	0.9mm
Insulation material:	Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin	Outer diameter of finished wire:	6.1±0.1mm
Sheath material:	radiation cross-linked low-smoke halogen-free flame-retardant polyolefin	Conductor resistance (20ºC):	≤5.09Ω/km
Nominal cross section:	4mm2 6mm2	Working environment temperature ºC:	-40~+90
current carrying capacity:	5 high	Higher conductor temperature:	+120ºC
Number of cores:	1	Reference short-circuit allowable temperature:	200ºC5S
Conductor structure:	NO./mm 56/0.30	Rated voltage:	DC: 1.8kv AC U. /U: 0.6/1kv

Application:

PV1-F Solar Panel Cable for indoor photovoltaic solar installation of electric equipment line.

Main features and advantages: PV1-F Solar Panel Cable having superior photovoltaic UV, heat, cold, ultraviolet radiation resistance, ozone resistance, water resistance, acid resistance, salt corrosion, the superior wear resistance and weather capability.
