Polycrystalline PERC Solar PV Panel 335W 340W 345W 350W 355W 60cells Black

Product Categories

SHENZHEN HODAS TECHNOLOGY COMPANY

Contact Now

Name: Polycrystalline PERC Solar PV Panel 335W 340W 345W 350W 355W 60cells Black
Brand: Hochiry
Price: 1 USD

Brand Name : Hochiry

Certification : TUV

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 20-25 work days

Packaging Details : Standard export carton + pallet,26pcs per pallet, 380pcs per 20ft container, 840pcs per 40ft container,

Product name : Pv Solar Panel Mono

Solar cell : Polycrystalline 156*156 Cell

Material : Polycrystalline Silicon

Number of cells : 60(6*10)Pcs

Max. power : 450W 550W 600W

Frame : Anodized Aluminium Alloy

Panel Efficiency : 20%

Glass : 3.2mm High Transmission Tempered Glass

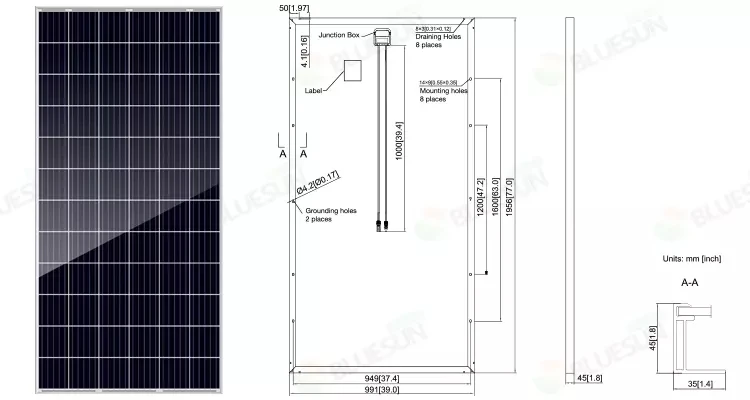

Size : 1640*992*35mm

Contact Now

Poly Solar Panel For Home High Efficiency 335W 340W 345W 350W 355W Polycrystalline 60cells Black PERC Solar Power System

Poly Solar Cells Solar Panel Description

Moduel	HDS-TD335P	HDS-TD340P	HDS-TD345P	HDS-TD350P	HDS-TD355P
Rated Maximum Power at STC	335	340	345	350	355
Open Circuit Voltage(Voc/V)	46.3	46.5	46.7	46.9	47
Maximum PowerVoltage(Vmp/V)	37.9	38.2	38.4	38.5	38.7
Short Circuit Current(Isc/A)	8.84	8.9	9	9.09	9.17
Maximum Power Current(Imp/A)	9.36	9.45	9.5	9.6	9.69
Module Efficiency(%)	17.3	17.5	17.8	18	18.3
Power Tolerance	-0~+5%
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

Product Details

Polycrystalline PERC Solar PV Panel 335W 340W 345W 350W 355W 60cells Black

Moduel	TJ-TD335P	TJ-TD340P	TJ-TD345P	TJ-TD350P	TJ-TD355P
Rated Maximum Power at STC	335	340	345	350	355
Open Circuit Voltage(Voc/V)	46.3	46.5	46.7	46.9	47
Maximum PowerVoltage(Vmp/V)	37.9	38.2	38.4	38.5	38.7
Short Circuit Current(Isc/A)	8.84	8.9	9	9.09	9.17
Maximum Power Current(Imp/A)	9.36	9.45	9.5	9.6	9.69
Module Efficiency(%)	17.3	17.5	17.8	18	18.3
Power Tolerance	-0~+5%
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

Production line

Polycrystalline PERC Solar PV Panel 335W 340W 345W 350W 355W 60cells Black

Oversea projects

Polycrystalline PERC Solar PV Panel 335W 340W 345W 350W 355W 60cells Black
