Home 300w 400w PV Panel Industrial Commercial Electrical Solar Panel IP68

Name: Home 300w 400w PV Panel Industrial Commercial Electrical Solar Panel IP68
Brand: Hochiry
Price: 1 USD

China Home 300w 400w PV Panel Industrial Commercial Electrical Solar Panel IP68 wholesale

Brand Name : Hochiry

Certification : TUV

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 20-25 work days

Packaging Details : 27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Product name : Monocrystalline Solar Panel

Solar cell : Mono 156mm*156mm

Material : Monocrystalline Silicon

Number of cells : 60(6*10)Pcs/72(6*12) Pcs/78(6*13) Pcs

Solar power (w) : 2000W

Max. power : 360w/ 365w/ 370w/ 375w

Solar Cells : Monocrystalline,Polycrystalline,Amorphous Silicon

Frame : Anodized Aluminium Alloy

Warranty : 25 Years Output Power Guarantee

Contact Now

300W 400W Solar Panel Home Industrial Commercial Electrical Solar Panel

A Grade Material

Home 300w 400w PV Panel Industrial Commercial Electrical Solar Panel IP68

Glass

* High-transmittance and low reflection

Inspection:GB15763.2-2005.ISO9050

* High solar transmittance

* High mechanical strength

Solar Cell

* High efficiency is 22%

* High shunt-resistance: adapt the several environmental conditions.

* By pass diode minimizes the power drop by shade.

* Excellent low light effect Low breakage rate

Frame

* Aluminium extrusion profile with prompt

delivery.

* Available in customized surface finish.

* Excellent material for smooth and subtle edges.

* Extrusion for construction and other industrial purposes.

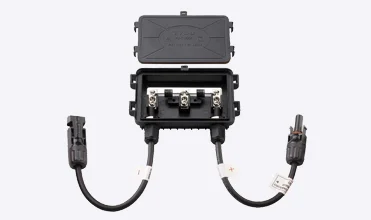

Junction Box

* High current and voltage carrying capacity.

* IP68 Waterproofness, Full-Glue-Filled

* 4mm2 Qualified cable with MC4, 500N

Tensile Strength

High Efficiency Free Of Contamination 305watt 310watt Mono Glass Solar Panel

Mono144 Half Cells

Moduel	LR4-72-435M		LR4-72-440M		LR4-72-445M		LR4-72-450M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power(Pmax/W)	435	324.9	440	328.6	445	323.3	450	336.1
Open Circuit Voltage(Voc/V)	48.7	45.7	48.9	45.8	49.1	46.0	49.3	46.2
Short Circuit Current(Isc/A)	11.39	9.21	11.46	9.27	11.53	9.33	11.60	9.38
Voltage at Maximum Power(Vmp/V)	40.9	38.1	41.1	38.3	41.3	38.5	41.5	38.6
Current at Maximum Power(Imp/A)	10.64	8.53	10.71	8.59	10.78	8.64	10.85	8.70
Module Efficiency(%)	-40 °C to +85 °C

Poly 60 Whole cells

Moduel	TS-60-275P	TS-60-280P	TS-60-285P
Maximum Power at STC (Pmax)	275W	280W	285W
Optimum Operating Voltage (Vmp)	31.4V	31.6 V	31.7 V
Optimum Operating Current (Imp)	8.76 A	8.86 A	9.00 A
Open Circuit Voltage(Voc)	38.1V	38.5 V	38.9 V
Short Circuit Current(Isc)	9.27A	9.38 A	9.46A
Module Efficiency	16.8%	17.1%	17.4%
Operating Module Temperature	-40 °C to +85 °C
Maximum System Voltage	1000/1500 V DC (IEC)

Mono 120 Half Cells

Moduel	LR4-60HPH-360M		LR4-60HPH-365M		LR4-60HPH-370M		LR4-60HPH-375M
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power(Pmax/W)	360	268.8	365	272.6	370	276.3	375	280.0
Open Circuit Voltage(Voc/V)	40.5	38	40.7	38.2	40.9	38.3	41.1	38.5
Short Circuit Current(Isc/A)	11.35	9.17	11.43	9.25	11.52	9.32	11.60	9.38
Voltage at Maximum Power(Vmp/V)	34	31.7	34.2	31.8	34.4	32	34.6	32.2
Current at Maximum Power(Imp/A)	10.59	8.49	10.68	8.56	8.56	8.63	10.84	8.69
Module Efficiency(%)	-40 °C to +85 °C

Hochiry solar - established in 2015 with 1.5GW solar module production capacity

Covers 58,000 sqm and has 350 employees. DAH solar is a national high-tech enterprise specializing in R & D and manufacturing of solar modules, have own engineer team for complete set solar system design for residential and commercial projects.

Solar cell Welding

Use automatic welding machine to connect solar cells in series All the solar cells are made by top class brand, like TW Solar, Longi Solar

Automatic typesetting machine

After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically typeset the battery string. High precision, high efficiency, low defect rate

Automatic welding

Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process

EL Testing

Use the mirror to inspect the appearance of the solar modules before lamination, and repair them if they are defective;

Visual Inspection

Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the previous process

Flash Testing

Including temperature, power, voltage, current and other related tests, ensure 0~+5W Positive Power Tolerance
