4 In 1 MC4Y Solar PV Connector 30A Electric Wire Connector 1pin

Name: 4 In 1 MC4Y Solar PV Connector 30A Electric Wire Connector 1pin
Brand: Hochiry
Price: 3.5 USD

China 4 In 1 MC4Y Solar PV Connector 30A Electric Wire Connector 1pin wholesale

Brand Name : Hochiry

Model Number : MC4Y connector

Certification : TUV

Place of Origin : CHINA

MOQ : 100 PCS

Price : 3.5USD/PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000 Pieces per Week

Delivery Time : 5-8 work days

Packaging Details : Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 40*26*31cm

Product Name : Y Branch Connector

Connector Type : Male & Female Solar Connector

Test voltage : 8kV(50Hz,1 min)

Contact resistance : <5mΩ

Pins : 1pin

Contact material : Copper,Tin plated

Waterproof protection : IP68

Rated Voltage : 1000V/1500V

Contact Now

4 In 1 Solar System 30A PV Electric Wire Connector MC4Y Solar Connector

MC4Y Solar Connector Description:

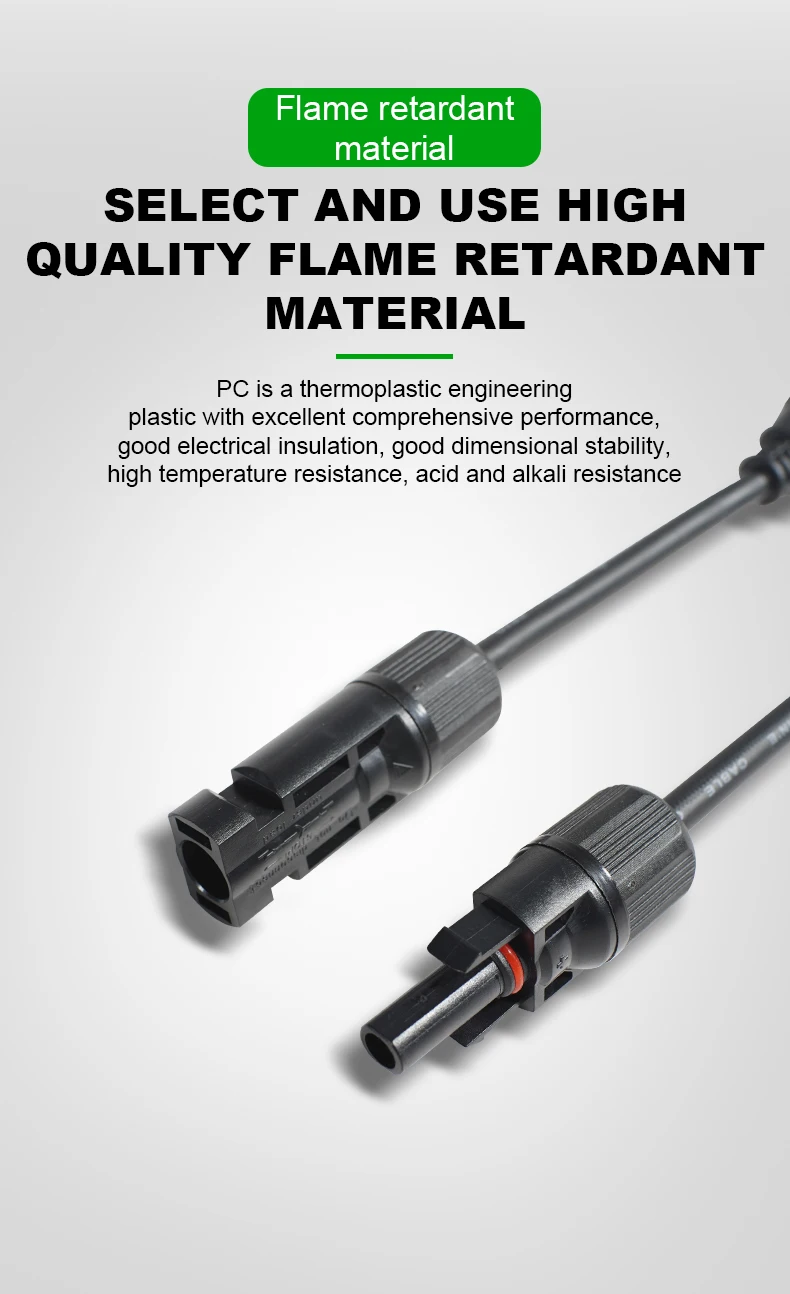

a. Application:Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .

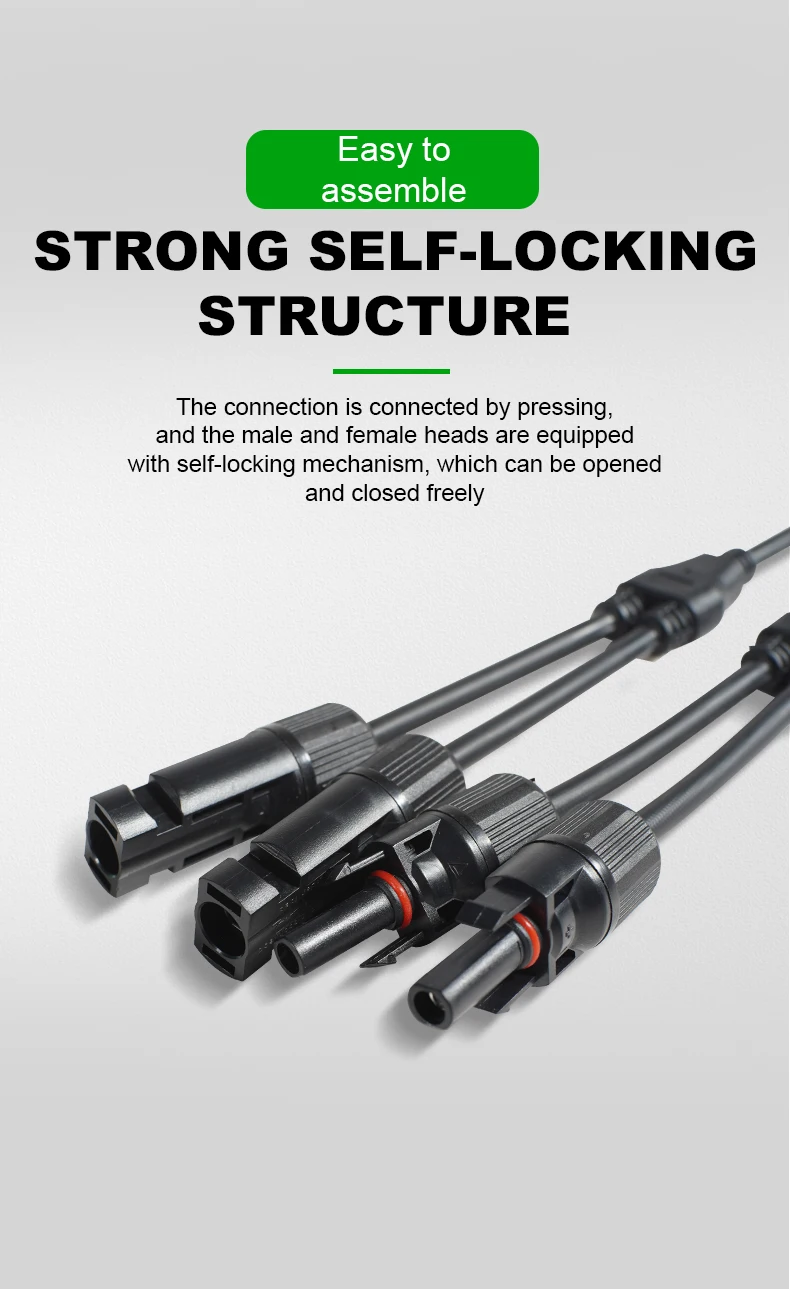

b. Construction:MC4 Y Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.

MC4Y Solar Connector Advantages:
a.Simple on-site processing
b.Mating safety provided bykeyed housings
c.Multiple plugging and unplugging cycles
d.Accomodates PV cable with different insulation diameters
e.High current carrying capacity
f. TUV and UL approved

MC4Y Solar Connector Technical Data:

Type	MC4Y connector
Rated current	30A(2-6mm2)
Rated vollage	1000V DC 1500V DC
Test vollage	6000V(50Hz,1min)
Insulation material	PA/PRO
Overvollage type/pollution degree	CAT Ⅲ/2
Contact resistant of plug connector	1mΩ
Contact material	Copper,Tin-plated
Degree of protection	IP2*/IP65
Flame class	UL94-VO
Safety class	II
Insertion force	≤50N
withdrawal force	≥50N
Temperature range	-40°C~+110C
