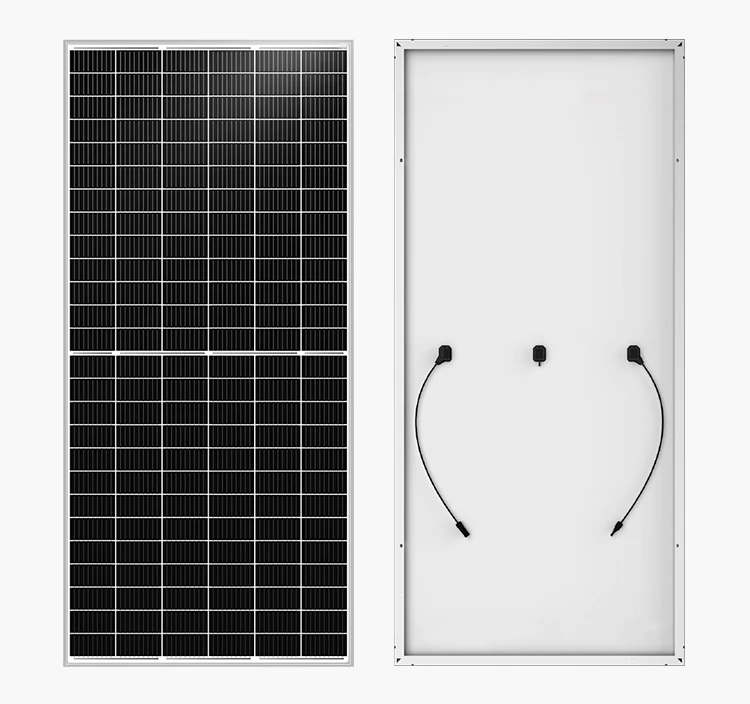

Anodized Aluminium 560W Solar PV Panel High Transmission

Name: Anodized Aluminium 560W Solar PV Panel High Transmission
Brand: Hochiry
Price: 1 USD

China Anodized Aluminium 560W Solar PV Panel High Transmission wholesale

Brand Name : Hochiry

Model Number : HCR570M-144

Certification : TUV

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 20-25 work days

Packaging Details : 27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Product name : 144 Cells Half Cell PV Solar Power Panel

Solar cell : 9BB MONO 182*91mm

Number of cells : 144 Cells

Solar power (w) : 2000W

Max. power : 555w 565w 575w 560W 580W

Frame : Anodized Aluminium Alloy

Material : Monocrystalline Silicon

Warranty : 30 Years Output Power Guarantee

Panel Efficiency : High Efficiency 144cells

Glass : 3.2mm High Transmission Tempered Glass

TPT back sheet : White Backsheet

Connector : MC4 Compatible

Junction Box : IP68 rated, 3 diodes

Contact Now

Hochiry 144 Half Cut Cells 560W 580W Solar Equipment Panels 555w 565w 575w Pv Power Module For Home Electricity

Model Number:HCR570M-144
Weight:24kg

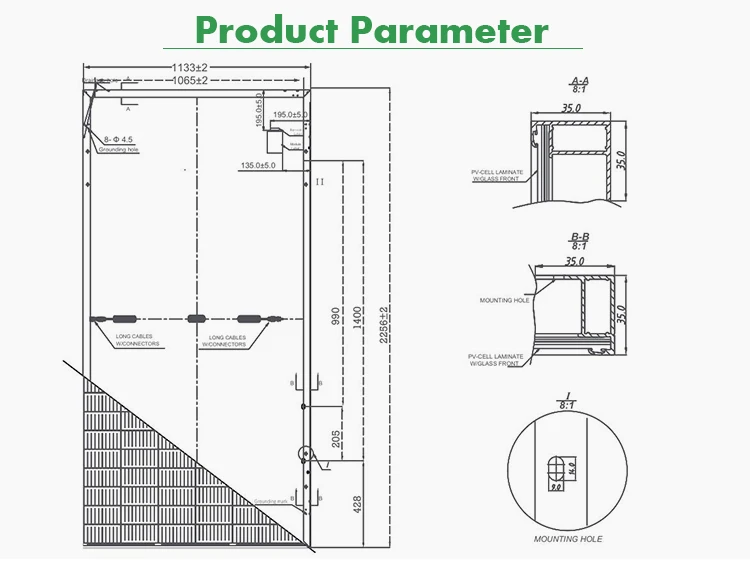

Size:2256*1132*35mm(Opt)
Junction Box:IP68 Rated
Solar cell: Monocrystalline, PERC,166mm(9BB)
TPT back sheet:White Backsheet
Connector:MC4 Compatible /MC4 EVO2/TS4*
Glass:3.2mm, High Transmission, AR Coated Heat

Product Description

Anodized Aluminium 560W Solar PV Panel High Transmission

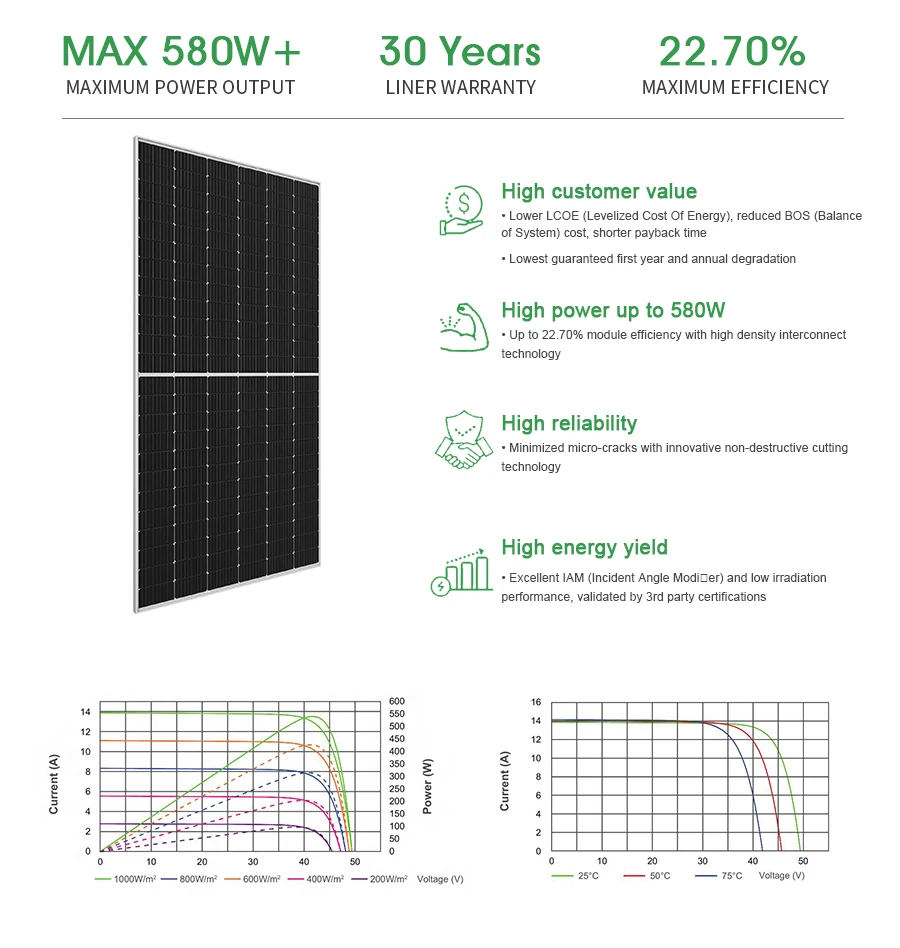

Electrical Parameters
Module	HCR555M-144 ~ HCR580M-144
Encapsulation	Class/Eva/Cell/Eva/Backsheet
Maximum Power Pmax(W)	555	560	565	570	575	580
Maximum Power Voltage(Vmp/V)	41.8	42	42.2	42.4	42.6	42.8
Maximum Power Current(Imp/A)	13.29	13.35	13.41	13.47	13.53	13.59
Open Circuit Voltage(Voc/V)	50	50.2	50.4	50.6	50.8	51
Short Circuit Currrnt(Isc/A)	14.05	14.11	14.17	14.23	14.29	14.35
Module Efficiency(%)	21.7	21.9	22.1	22.3	22.5	22.7
Power Tolerance(W)	0~+5W
Temperature Coefficient of Isc(αIsc)	+0.059%/℃
Temperature Coefficient of Voc(βVoc)	-0.330%/℃
Temperature Coefficient of Pmax(γVoc)	-0.410%/℃
STC	Irradiance 1000w/㎡, Cell Temperature 25℃, Air Mass 1.5

Product Details

Glass by XINYI,SG CNBMAnti-reflective glass

22% Higher Efficiency Cell by  Tier 1 Brand

Frame by Tentop(Black/Silver Optional) 120N Tensile Strength Frame

Waterproof Labels Product by Waterproof Labels Sunway/OEM

Juction Boxes by TL, QC Solar Innovative Full-Glue-Filled IP68 Waterproofness

PV Connector by TL, QC Solar MC4 4mm Qualified cable

Our Factory

Product Packaging

Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
 with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.

Project Case
