450w Mono Photovoltaic Solar Panel Polycrystalline Perc Solar Panel

Name: 450w Mono Photovoltaic Solar Panel Polycrystalline Perc Solar Panel
Brand: Hochiry
Price: 1 USD

Brand Name : Hochiry

Model Number : HR450M-144HC

Certification : TUV

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 20-25 work days

Packaging Details : 27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Product name : Mono Perc Half Cell Solar Panels

Solar cell : Mono 156mm*156mm

Number of cells : 60(6*10)Pcs/72(6*12) Pcs/78(6*13) Pcs

Max. power : 450w 460w

Solar Cells : Monocrystalline,Polycrystalline,Amorphous Silicon

Frame : Anodized Aluminium Alloy

Material : Monocrystalline Silicon

Warranty : 25 Years Output Power Guarantee

Panel Efficiency : High Efficiency 144cells

Glass : 3.2mm High Transmission Tempered Glass

TPT back sheet : White Backsheet

Connector : MC4 Compatible

Junction Box : IP68 rated, 3 diodes

Contact Now

Hochiry Mono Photovoltaic Module Solar Panel 450w 460w Half Cell 9BB Monocrystalline Perc Solar Panel

Model Number:HCR450M-144
Weight:24kg

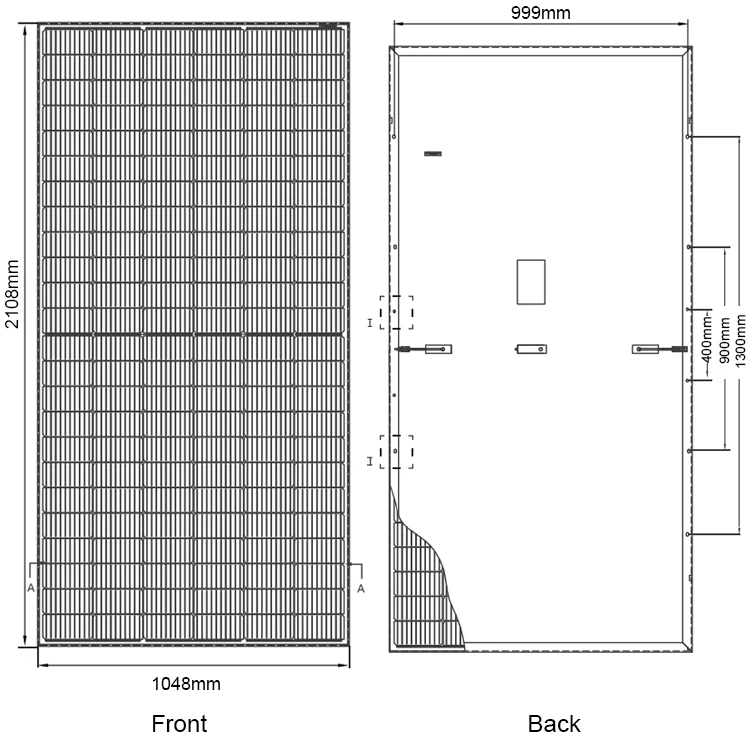

Size:2115*1052*40mm(Opt)
Junction Box:IP68 Rated
Solar cell: Monocrystalline, PERC,166mm(9BB)
TPT back sheet:White Backsheet
Connector:MC4 Compatible /MC4 EVO2/TS4*
Glass:3.2mm, High Transmission, AR Coated Heat

450w Mono Photovoltaic Solar Panel Polycrystalline Perc Solar Panel

Half Cut Technology
 Under the same shadow condition, power loss of half-cell solar panel is less than that of full cell solar panel.
 Multi Busbar Technology
 MBB technology improves efficiency of modules, offers a better aesthetic appearance.

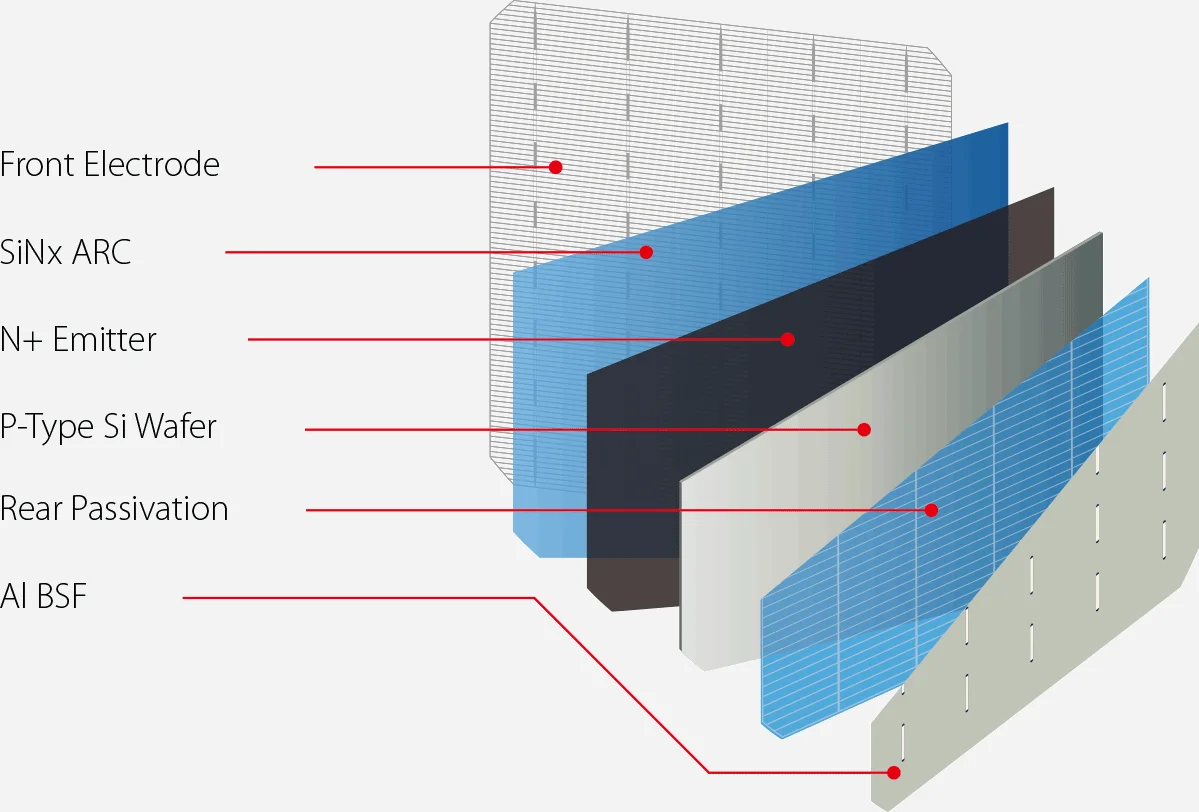

 PERC Technology
 The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

Electrical Parameters
Model	HCR450M-144 ~ HCR480M-144
Encapsulation	Class/Eva/Cell/Eva/Backsheet
Maximum Power Pmax(W)	450	460	470	480
Maximum Power Voltage(Vmp/V)	41.00	41.20	41.80	42.20
Maximum Power Current(Imp/A)	10.98	11.10	11.22	11.34
Open Circuit Voltage(Voc/V)	49.50	50.00	50.50	51.00
Short Circuit Currrnt(Isc/A)	11.42	11.54	11.60	11.79
Module Efficiency(%)	20.37	20.82	21.27	21.73
Power Tolerance(W)	0~+5W
Temperature Coefficient of Isc(αIsc)	+0.059%/℃
Temperature Coefficient of Voc(βVoc)	-0.330%/℃
Temperature Coefficient of Pmax(γVoc)	-0.410%/℃
STC	Irradiance 1000w/㎡, Cell Temperature 25℃, Air Mass 1.5

Product Details

Multi Busbar Technology

Improve efficiency of modules,
offers better appearance.

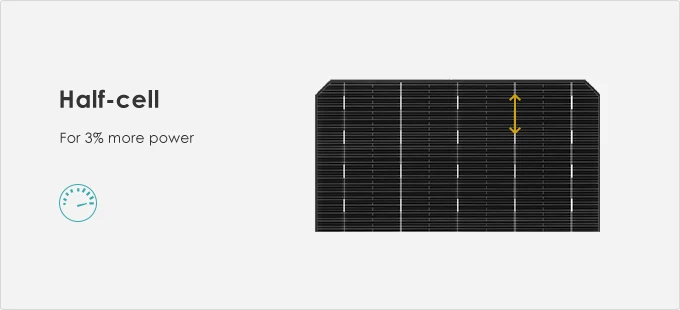

Half Cut Technology

Under the same shadow condition,
Lower power loss than full cell.

PERC Cell Technology

120N Tensile Strength Frame
110% Seal-lip Design Glue Injection.

Frame

Tensile Strength, boost
bearing capability, prolong service life

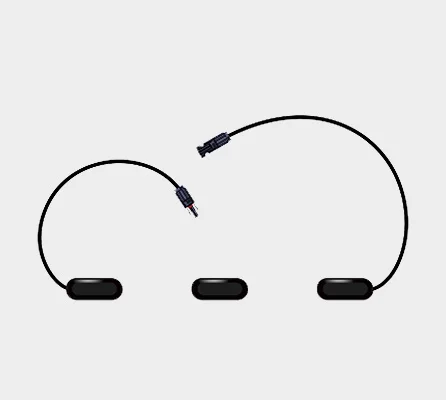

Split Junction Box

Reduced internal power loss,
ensures module running safety

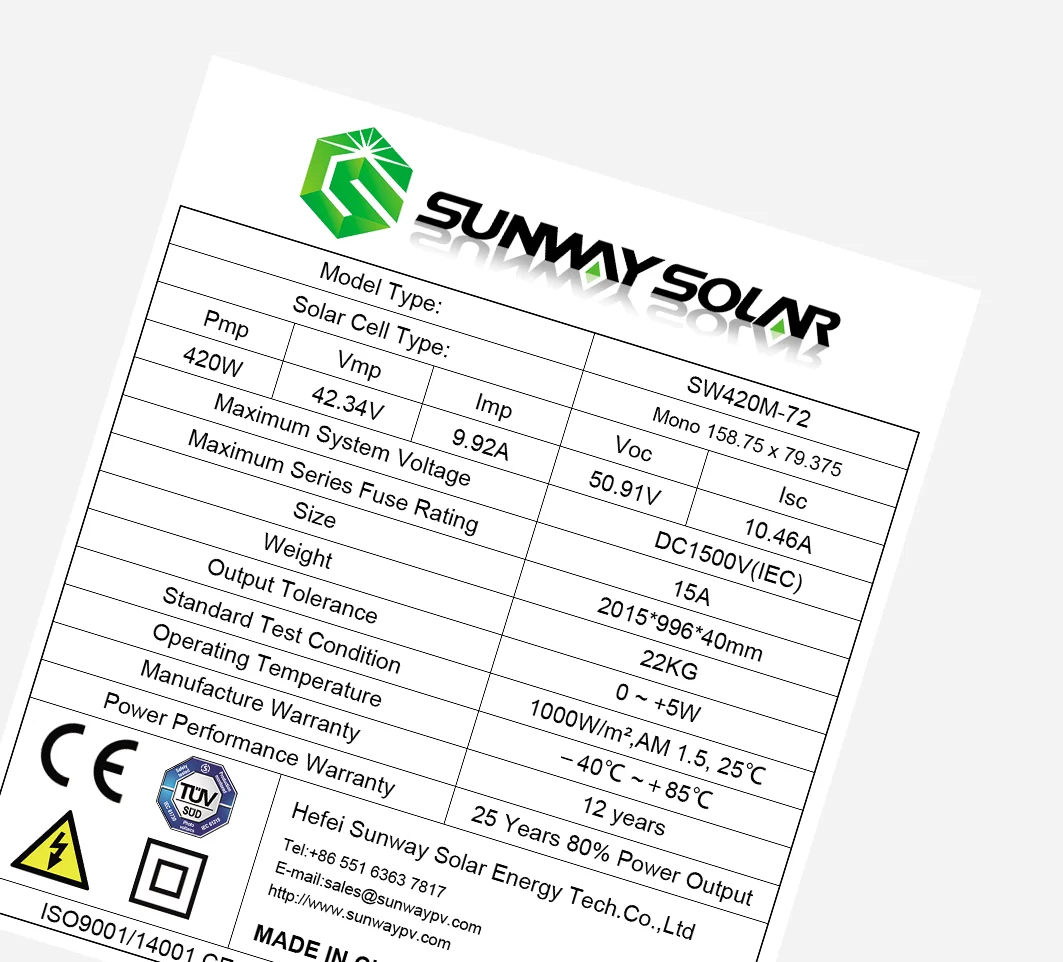

Waterproof Label

Acceptable OEM,
could print your logo on it

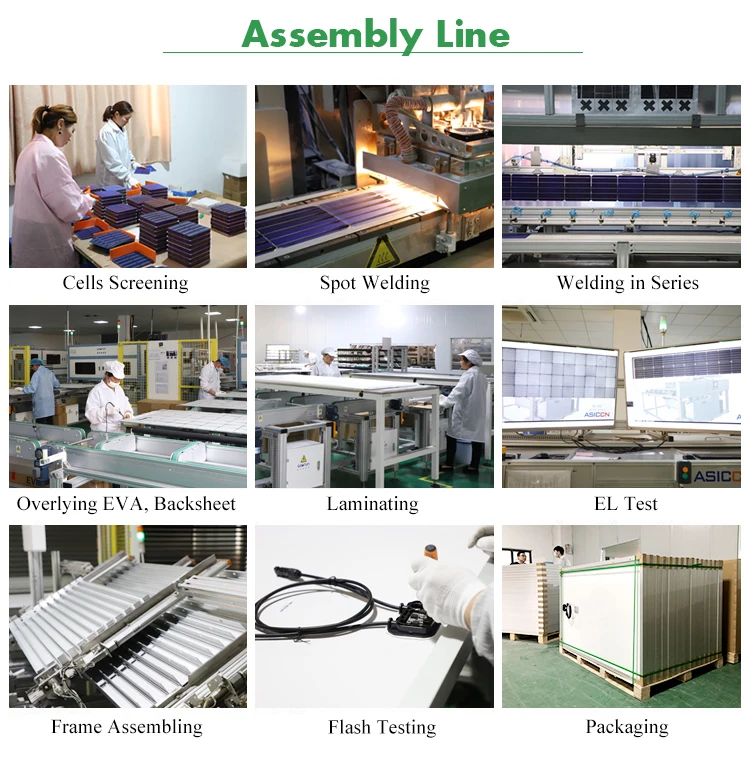

Quality Control

Product Packaging

Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
 with extra materil and labor costs if your order less than a pallet, we accept any customized packing as per your rquest.
