5kw Solar Energy System Monocrystalline Silicon Solar Panel For Home Roof Mounting

Name: 5kw Solar Energy System Monocrystalline Silicon Solar Panel For Home Roof Mounting
Brand: Hochiry
Price: 1 USD

China 5kw Solar Energy System Monocrystalline Silicon Solar Panel For Home Roof Mounting wholesale

Brand Name : Hochiry

Model Number : HR450M-144HC

Certification : TUV

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 20-25 work days

Packaging Details : 27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Product name : Off Grid Solar Power Solution System

Solar cell : Mono 156mm*156mm

Number of cells : 60(6*10)Pcs/72(6*12) Pcs/78(6*13) Pcs

Solar power (w) : 2000W

Max. power : 450W 540W 600W

Solar Cells : Monocrystalline,Polycrystalline,Amorphous Silicon

Frame : Anodized Aluminium Alloy

Material : Monocrystalline Silicon

Warranty : 25 Years Output Power Guarantee

Panel Efficiency : High Efficiency 144cells

Glass : 3.2mm High Transmission Tempered Glass

Inverter : 10kw inverter

Power System : Off Grid Solar Power Solution System

Mounting Type : Ground Mounting, Roof Mounting, Carport Mounting

Battery Type : Lead-Acid

Contact Now

Hochiry Polycrystalline Silicon Monocrystalline Silicon Full Solar Energy System 5kw For Home Roof Mounting Ground Mount

What is off grid system?


Off-grid system is suitable for areas without grid-connected or unstable geid-connected power.
Off grid system is usually composed od solar panels. connector, inverter, battery and mounting system.

1. Safe & Reliable

Professional Design
Support utility grid and generator voltage input

2. Flexible

12V/2V lead-acid battery Optional
PWM/MPPT Controller Optional
Poly/Mono solar Module Optional

5KW off grid solar system Equipment list
Item	Module	Description	Quantity
1	Mono Solar Panel HR360M-72	Mono 360w solar panel	15pcs
2	Solar Charge Controller	MPPT 48V 100A	1set
3	Gel Solar Battery with battery cable	12V 250ah	4pcs/8psc
4	Off Grid Inverter	Output Power: 5kW Battery voltage:48V Output voltage: Single Phase 100V-240V 50/60Hz	1pc
5	PV Combiner Box (Switches,Breaker,SPD)	5 input 1 output	1pc
6	PV Cables	PV 4mm²	100m
7	Mounting System (including all parts)	Roof/Ground whole set for 15pcs solar module	1set
8	MC4 connector	Rate Current:30A Rate Voltage: 1000DVC	5pairs

5kw off grid solar system

5kw Solar Energy System Monocrystalline Silicon Solar Panel For Home Roof Mounting

MONO/POLY Solar Panel

*Positive power tolerance:0~+5w 100%
*EL Double-inspection ensures modules are defects free *Modules Binned by Current to improve system performance *Potential induced
Degradation(PID) Resistant

5kw Solar Energy System Monocrystalline Silicon Solar Panel For Home Roof Mounting

5kw off grid solar inverter



Intelligent IC control
Multiple protection function
Pure sine wave
Buzzer alarm to remind
Work instruction function
Doule-sided PCB/import zero device
Alumimum alloy shell

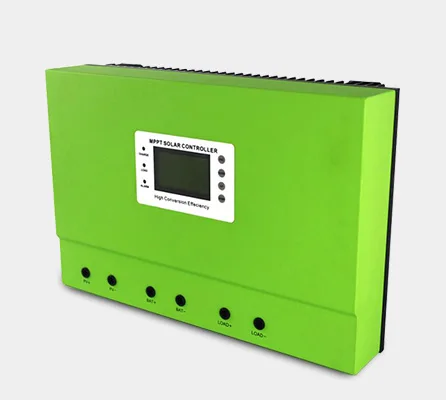

Solar Charger Controller

Battery system voltage automatic recognition
3 years warranty, and 3~10 years can be extended
MPPT efficiency≥99.5%, converter efficiency up to 98%
PC software monitoring and WIFI module to realize APP cloud monitoring.



5kw Solar Energy System Monocrystalline Silicon Solar Panel For Home Roof Mounting

  Battery
> Agm Battery
> Gel Battery
> 2V,12V
Without a battery bank (or a generator) it'll be lights out by sunset.
A battery bank is essentially a group of batteries wired together


Mounting structure

> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system.


5kw Solar Energy System Monocrystalline Silicon Solar Panel For Home Roof Mounting

Accessories

> PV Cable 4mm2 6mm2
> AC Cable
> DC Switches
> AC Breaker
> AC/DC Combine box

PV Tools

Wire Cable Cutter & Stripper,

MC3 MC4 Crimper

MC4 Connectors Assembly

Disassembly ToolPV Tools

5kw Solar Energy System Monocrystalline Silicon Solar Panel For Home Roof Mounting

Product packaging

5kw Solar Energy System Monocrystalline Silicon Solar Panel For Home Roof Mounting

Application

5kw Solar Energy System Monocrystalline Silicon Solar Panel For Home Roof Mounting
